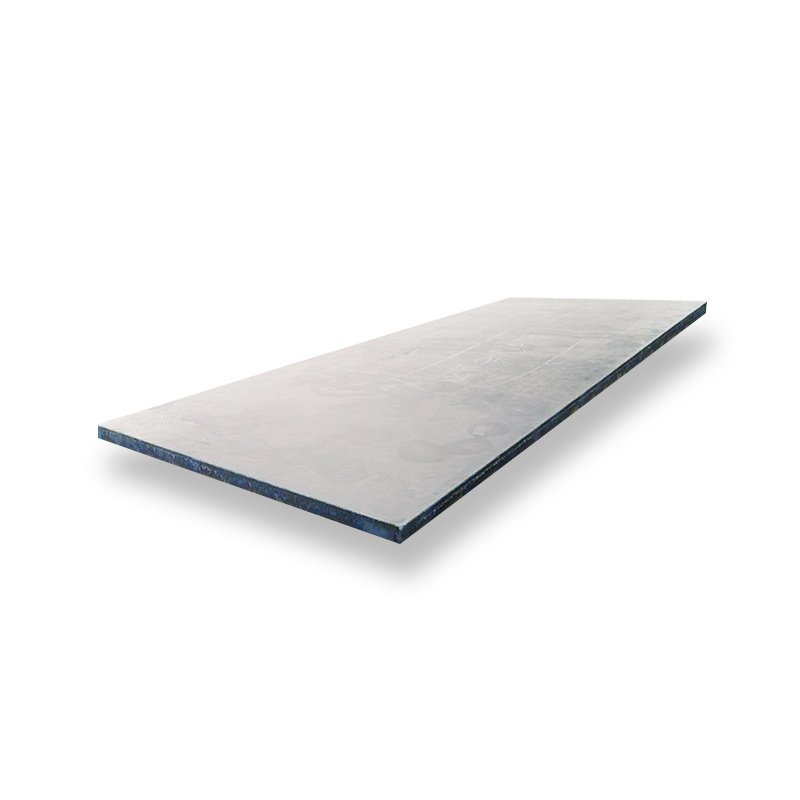

JIS G3103 P296GH/P355GH/P235GH Pressure Vessel Steel Plate

JIS G3103 is the Japanese standard boiler vessel steel plate, which is widely used in petroleum, chemical industry, power stations, boilers and other industries, boiler and pressure vessel manufacturing, etc. This kind of vessel steel plate not only has very high strength but also has remarkable toughness, wear resistance, fatigue resistance, impact resistance, corrosion resistance, as well as easy processing and molding properties. It is mostly used in the boiler and petrochemical container manufacturing industry.

Product Parameters

Product Name	JIS G3103 P296GH/P355GH/P235GH Pressure Vessel Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film



Chemical Composition

Brand	C	Si	Mn	P	S	Mo
SB410	0.24-0.30	0.15-0.40	0.90	0.030	0.030	-
SB450	0.33	0.45	0.98	0.030	0.030	-
SB480	0.35	0.45	1.30	0.030	0.030	-
SB450M	0.25	0.45	0.98	0.030	0.030	0.45-0.60
SB480M	0.27	0.45	0.98	0.030	0.030	0.45-0.60



Mechanical Properties

Brand	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation Gage 2in. [50mm], %
SB410	410-550	225	21
SB450M	450-590	255	19
SB450	450-590	245	19
SB480	480-620	265	17
SB480M	480-620	275	17



Scope of Application

JIS G3103 boiler vessel plate is widely used in petrochemical, manufacturing and other industries of boiler, pressure vessel manufacturing.



Equivalent Material

Brand	European Standard	German Standard	Japanese Standard	American Standard
SB450	P296GH	A St45, 17Mn4, StE315	SPV 315	A515 GR.55
SB450M	P296GH	A St45, 17Mn4, StE315	SPV 315	A515 GR.55
SB480	P355GH	A St52, 19Mn8, StE355	SPV 355	A537 CL1
SB480M	P355GH	A St52, 19Mn8, StE355	SPV 355	A537 CL1
SB410	P235GH	A St35, HI, StE255	SPV 235	A285 Gr.A, B, C

Q:What about your price?

A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.

Q:What certifications do your products have?

A:We have ISO 9001, SGS, EWC and other certifications.

Q:What kind of payment terms would you accept?

A:We always do T/T.30% T/T as deposit,70% T/T as balance.

Q:What is your MOQ?

A:We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Q:What is the delivery time?

A:10-15 days

Our factory products comply with CE/EN10204/ASTM/classification society certificates/CASO/BIS and other certificates, and all orders are subject to TPI (SGS/TUV/BV, etc.) inspection
